The electric PVC ball valve boasts several advantages, including compact structure, wear resistance, easy disassembly, and convenient maintenance. The valve body is made of hygienic and non-toxic material, featuring strong corrosion resistance, light weight, and a wide range of applications. It is suitable for various industries such as general pure water and drinking water pipeline systems, drainage and sewage pipeline systems, saltwater and seawater pipeline systems, and acid-base and chemical solution systems.

The ball valve is an important type of valve, widely used in petrochemical and long-distance pipeline industries. Its closure component is a partially spherical body with holes, which rotates along with the valve stem to open or close the valve. The flow direction can be arbitrary, with a wide adjustable range. It can be used in high-pressure and large-diameter applications to control media with high viscosity, fibers, and fine particles.

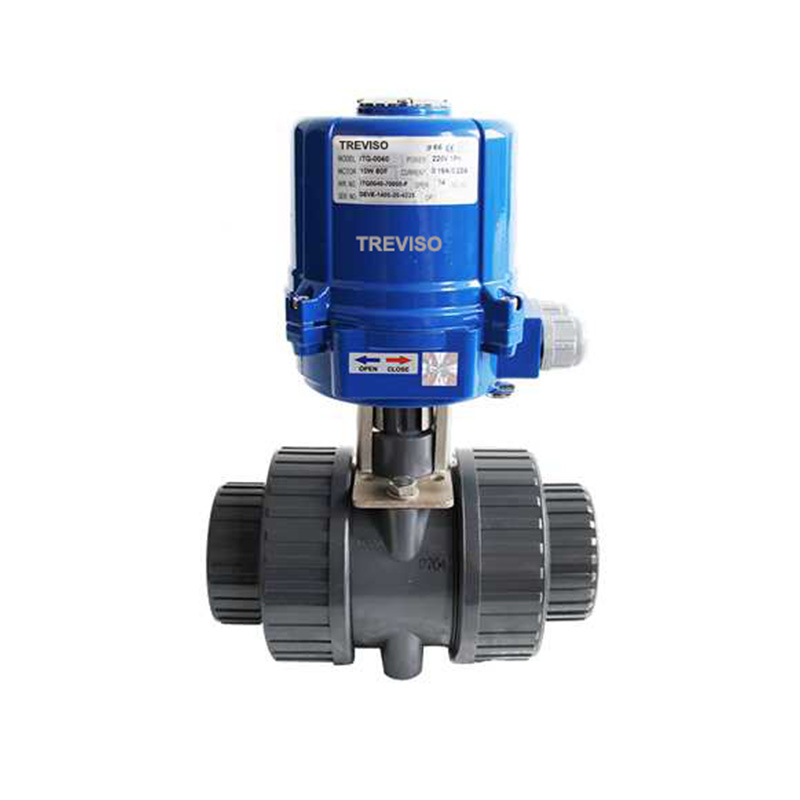

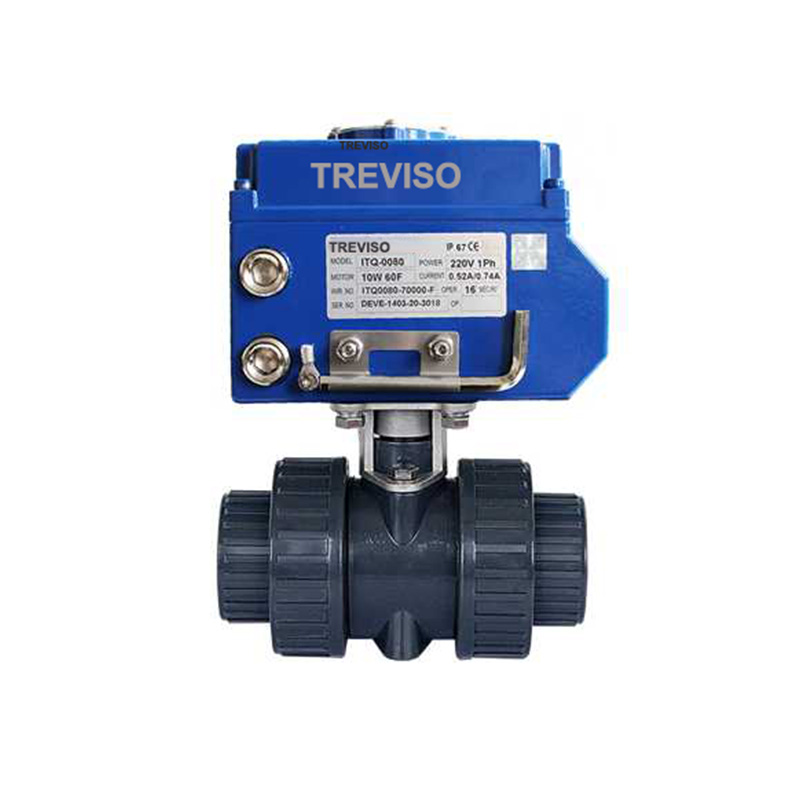

Product details of electric PVC ball valve actuator

1. External mechanical limit bolt

In the event of a malfunction in the electronic limit switch, it prevents the actuator from operating beyond its designated range. Cable connectors: standard 2 x PF3/4 (max. 1)

2. Torque switch

Overload protection, one each for on/off

3. Terminal block

Spring locking type, with secure wiring, will not fall off even in strong vibration environments

Characteristics of the actuator for electric PVC ball valve products

1. Small size, light weight, and high duty cycle.

2. Combined with planetary gears, it achieves high efficiency.

3. Applicable to automatic control of switch-type small ball valves/plug valves and dampers.

4. The specially designed induction motor features high starting torque and overheat protection.
