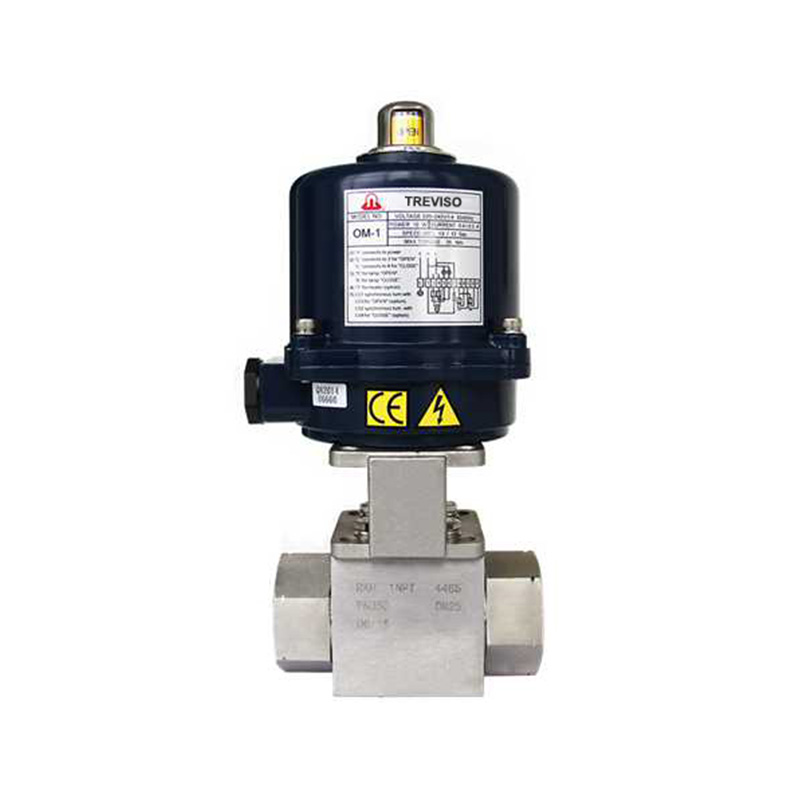

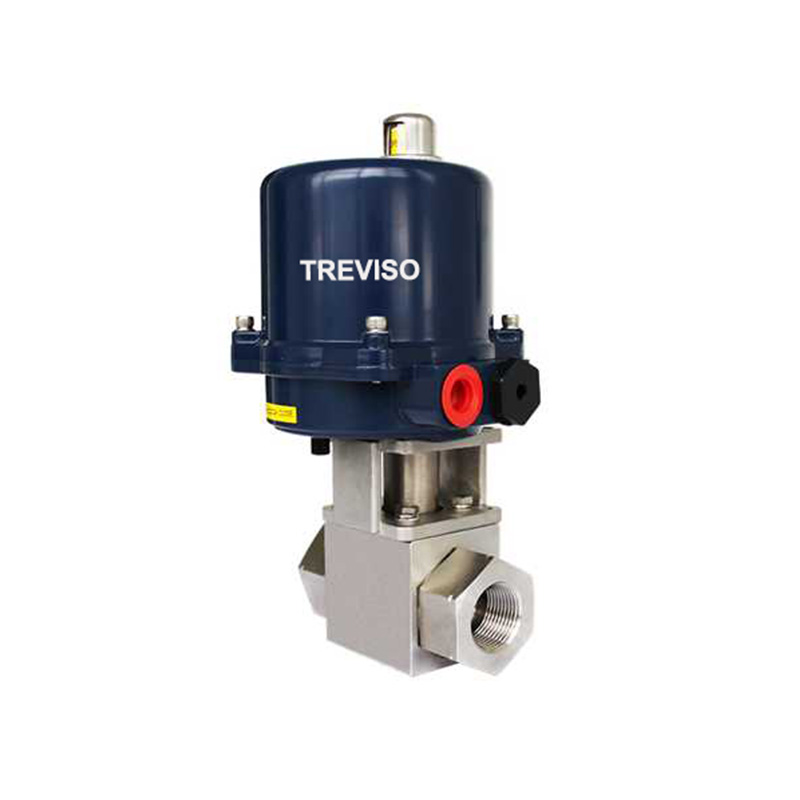

The electric high-pressure ball valve consists of a forged steel high-pressure valve body and an electronic angular-travel electric actuator. The electric actuator adopts an integrated structure, allowing direct on-off adjustment upon input of power supply. It can also be equipped with a built-in servo module, enabling control of operation upon input of control signals and single-phase power supply.

The main components of electric high-pressure ball valves are forged by professional manufacturers, overcoming the potential defects of cast steel valves and maintaining the uniformity of their structural pressure resistance under maximum working pressure. Applicable media: non-corrosive media such as water, oil, and gas, as well as acid and alkali corrosive media. Electric high-pressure ball valves are widely used in industries such as chemical, petroleum, natural gas, metallurgy, and in long-distance natural gas pipelines that contain hydrogen sulfide, impurities, and severe corrosion.

Product Features of the Electric High-Pressure Ball Valve Actuator

1. Shell:

(1) IP67: Waterproof and dustproof sealing level

(2) NEMA 4X: Waterproof and dustproof sealing

(3) Material: aluminum alloy powder coating

2. Motor:

(1) Standard induction motors are used in drives with a starting frequency of 30%, while DC motors are used at a starting frequency of 75%

(2) All models of motors are of F grade

(3) Equipped with a built-in temperature control protection device (135℃) to prevent motor overheating and burnout

3. Protruding type opening indicator: All models are equipped with a continuous mechanical device on the top of the housing for opening indication

4. Manual device:

(1) Clutchless design: When the current is interrupted, it can be disconnected without the need to use any auxiliary tools (such as wrenches, brakes, etc.),

The valve can be manually rotated to the desired position by directly turning the handwheel

(2) And when the power supply is normal, the personnel working in the workplace will not cause personal injury or drive malfunction due to misoperation of the handwheel

5. Gear set:

(1) High alloy steel gears have an automatic locking function to prevent valve rotation

(2) The gear assembly has been coated with sufficient high-temperature resistant lubricating oil

6. Working conditions:

(1) Ambient temperature: -30°C to +65°C

(2) Humidity: 30% - 95%

7. Certifications: ISO9001, CE, CAS, RoHS

8. Application areas: Widely used in petroleum, chemical, natural gas, power plant, metallurgy, water treatment engineering, and other fields

9. Power consumption: AC10W 300W

Closing time: 8sec/58sec 0°~90°

Maximum torque: 35~3500NM

Actuator voltage: AC: 1φ110V, 1φ220V, 3φ220V, 3φ380V, 3φ440V, 24V: DC24V. Opening indicator: All models feature a continuous mechanical device opening indicator located directly above the upper cover of the housing.
