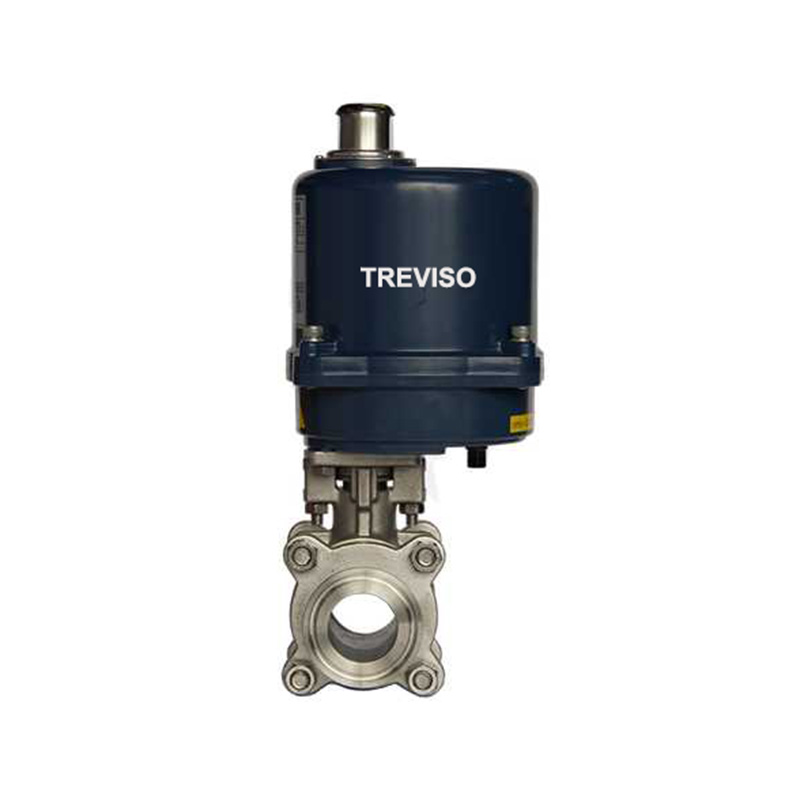

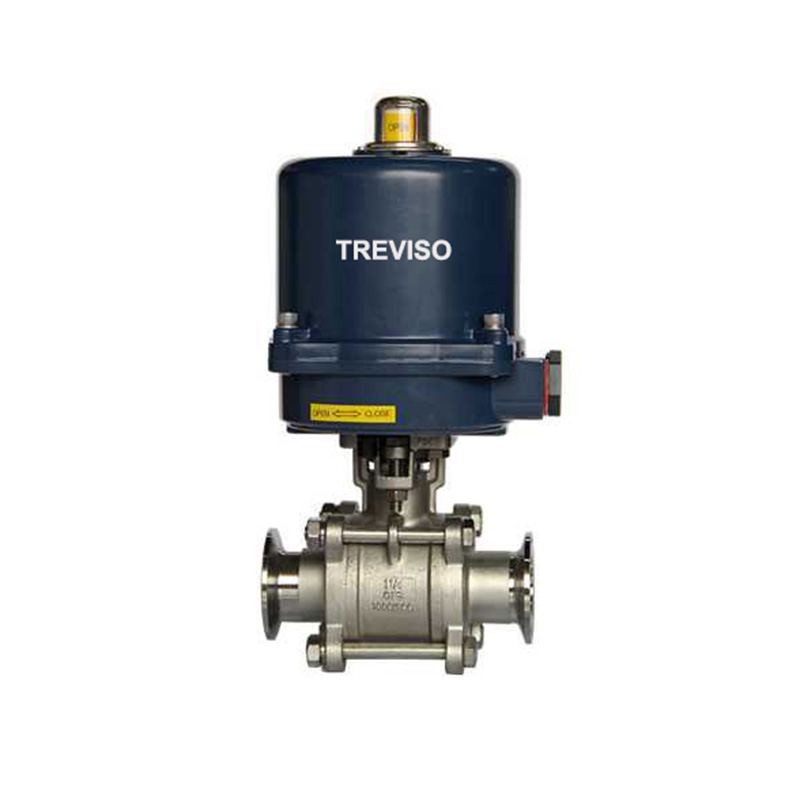

The flow path of the electric clamp ball valve has undergone precision polishing and sterilization treatment, utilizing a fully enclosed seal that ensures no dead spaces and is easy to clean. The valve body is crafted from stainless steel, and the inner wall of the flow path is electronically polished to maintain unobstructed fluid flow. Electric clamp ball valves are widely used in various fields such as beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biotechnology, and water treatment engineering.
The ball valve is an important type of valve, widely used in fields such as petrochemical industry and long-distance pipelines. Its closure component is a partially spherical body with holes, which rotates along with the valve stem to open or close the valve. The flow direction can be arbitrary, with a wide adjustable range. It can be used in high-pressure and large-diameter applications to control media with high viscosity, fibers, and fine particles.
Product Features of the Electric Clamp Ball Valve Actuator
1. Shell:
(1) IP67: Waterproof and dustproof sealing level
(2) NEMA 4X: Waterproof and dustproof grade sealing
(3) Material: aluminum alloy powder coating
2. Motor:
(1) Standard induction motors are used in drives with a starting frequency of 30%, while DC motors are used at a starting frequency of 75%
(2) All motor models are of F-grade
(3) Built-in temperature control protection device (135℃) to prevent motor overheating and burnout
3. Protruding type opening indicator: All models are equipped with a continuous mechanical device on the top of the housing for opening indication
4. Manual device:
(1) Clutchless design: When the current is interrupted, it can be disconnected without the need for any auxiliary tools (such as wrenches, brakes, etc.),
The valve can be manually rotated to the desired position by directly turning the handwheel
(2) And when the power supply is normal, the personnel working on the machine will not cause personal injury or drive malfunction due to misoperation of the handwheel
5. Gear set:
(1) High alloy steel gears have an automatic locking function to prevent valve rotation
(2) The gear set has been coated with sufficient high-temperature resistant lubricating oil
6. Working conditions:
(1) Ambient temperature: -30 to +65℃
(2) Humidity: 30% - 95%
7. Certifications: ISO9001, CE, CAS, RoHS
8. Application Fields: Widely used in petroleum, chemical, natural gas, power plants, metallurgy, water treatment engineering, and other fields
9. Power consumption: AC10W 300W
Closing time: 8sec/58sec 0°~90°
Maximum torque: 35~3500NM
Actuator voltage: AC: 1φ110V, 1φ220V, 3φ220V, 3φ380V, 3φ440V, 24V: DC24V. Opening indicator: All models feature a continuous mechanical device opening indicator directly above the upper cover of the housing.
