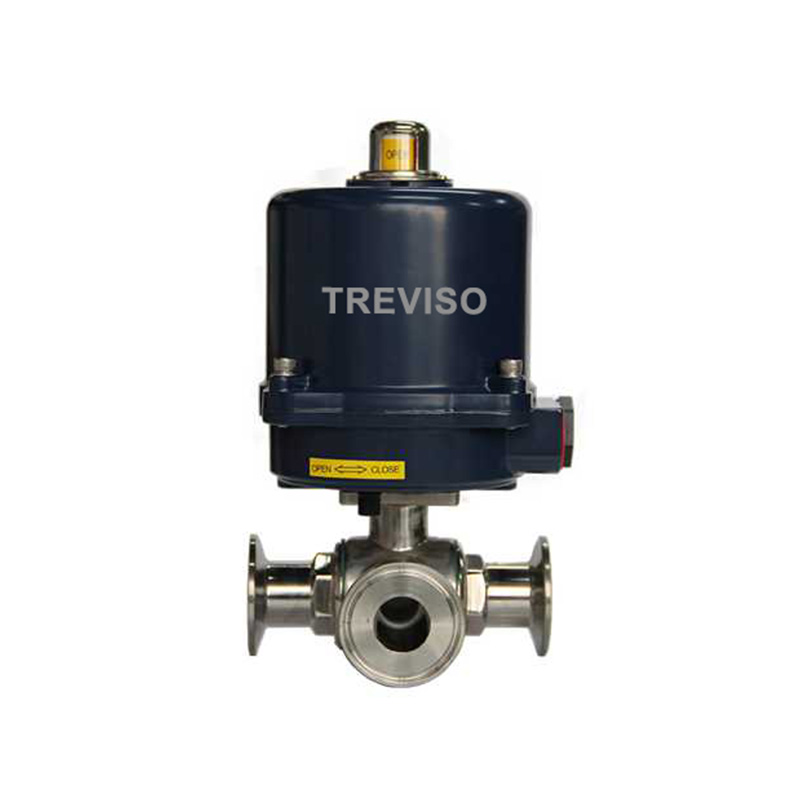

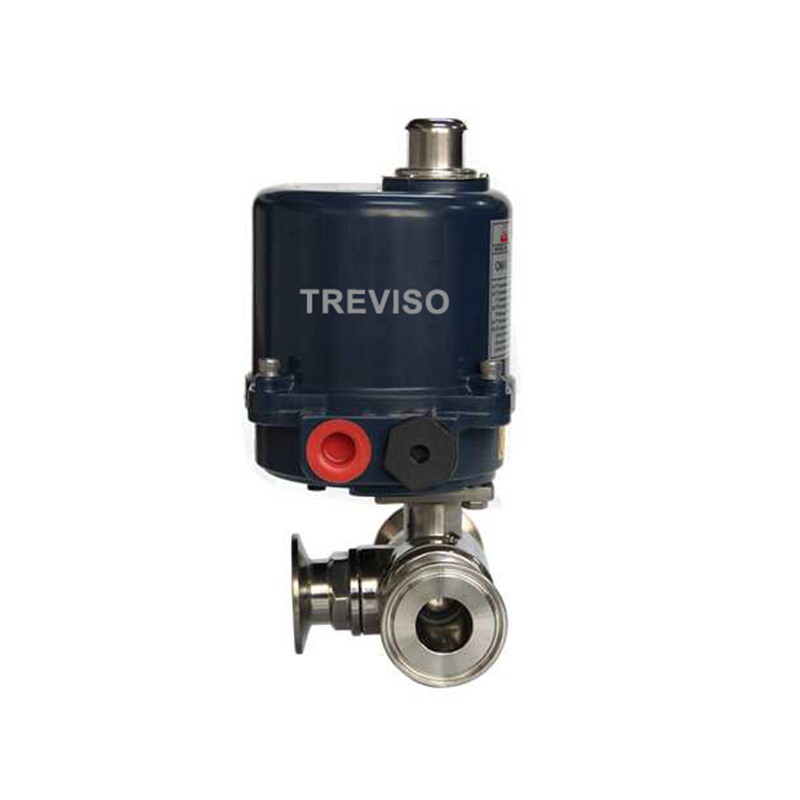

The electric three-way clamp ball valve consists of a three-way clamp ball valve and an electric actuator. The valve body's flow passage has undergone precision polishing and sterilization, employing a fully enclosed seal that eliminates dead spaces and facilitates easy cleaning. The valve body is crafted from stainless steel, with the inner wall of the flow passage electronically polished to ensure unobstructed fluid flow. The valve is available in both L-type and T-type configurations. The L-type ball core features three-way dual-port design, allowing for different combinations of control over the three pipelines' fluids by adjusting the relative angle between the ball core and the pipeline. The T-type port serves a proportioning function and is widely used in beer engineering, food engineering, chemical engineering, pharmaceutical engineering, biological engineering, and water treatment engineering.
The ball valve is an important type of valve, widely used in fields such as petrochemical industry and long-distance pipelines. The electric three-way clamp ball valve, powered by supply voltage, can be controlled to operate by receiving current signals or voltage signals inputted by industrial automation instrument control systems, thus achieving proportional adjustment or binary switching control of process media.
Product Features of Electric Three-way Clamp Ball Valve Actuator
1. Shell:
(1) IP67: Waterproof and dustproof sealing level
(2) NEMA 4X: Waterproof and dustproof sealing
(3) Material: aluminum alloy powder coating
2. Motor:
(1) Standard induction motors are used in drives with a starting frequency of 30%, while DC motors are used at a starting frequency of 75%
(2) All models of motors are of F grade
(3) Built-in temperature control protection device (135℃) to prevent motor overheating and burnout
3. Protruding type opening indicator: All models are equipped with a continuous mechanical device on the top of the housing for opening indication
4. Manual device:
(1) Clutchless design: When the current is interrupted, it can be disconnected without the need to use any auxiliary tools (such as wrenches, brakes, etc.),
The valve can be manually rotated to the desired position by directly turning the handwheel
(2) And when the power supply is normal, the operating personnel will not cause personal injury or drive malfunction due to misoperation of the handwheel
5. Gear set:
(1) High alloy steel gears have an automatic locking function to prevent valve rotation
(2) The gear assembly has been coated with sufficient high-temperature resistant lubricating oil
6. Working conditions:
(1) Ambient temperature: -30°C to +65°C
(2) Humidity: 30% - 95%
7. Certifications: ISO9001, CE, CAS, RoHS
8. Application areas: Widely used in petroleum, chemical, natural gas, power plants, metallurgy, water treatment engineering, and other fields
9. Power consumption: AC10W 300W
Closing time: 8sec/58sec 0°~90°
Maximum torque: 35~3500NM
Actuator voltage: AC: 1φ110V, 1φ220V, 3φ220V, 3φ380V, 3φ440V, 24V: DC24V. Opening indicator: All models feature a continuous mechanical device opening indicator located directly above the upper cover of the housing.
