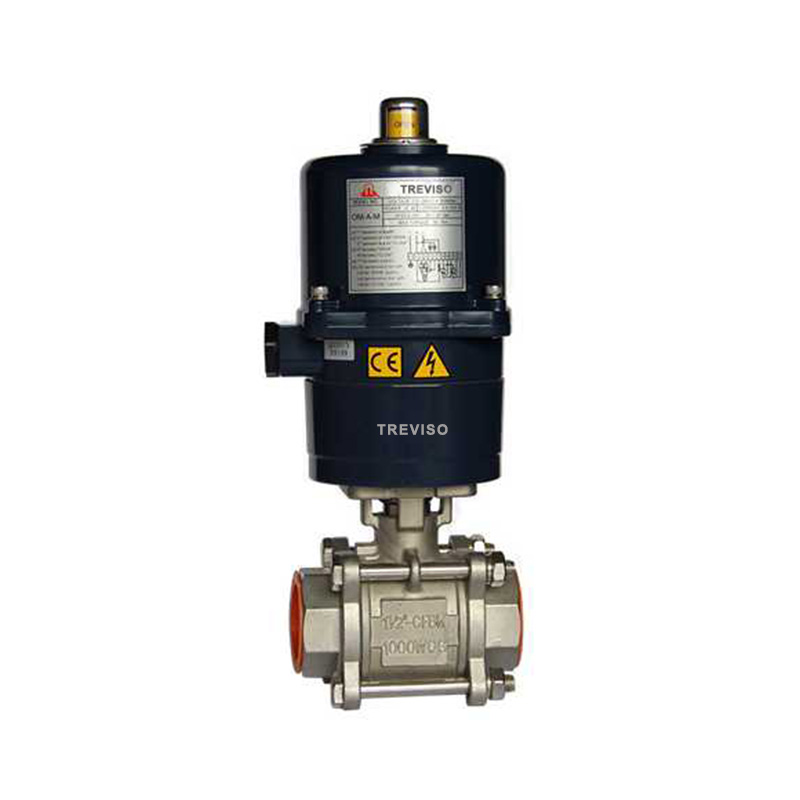

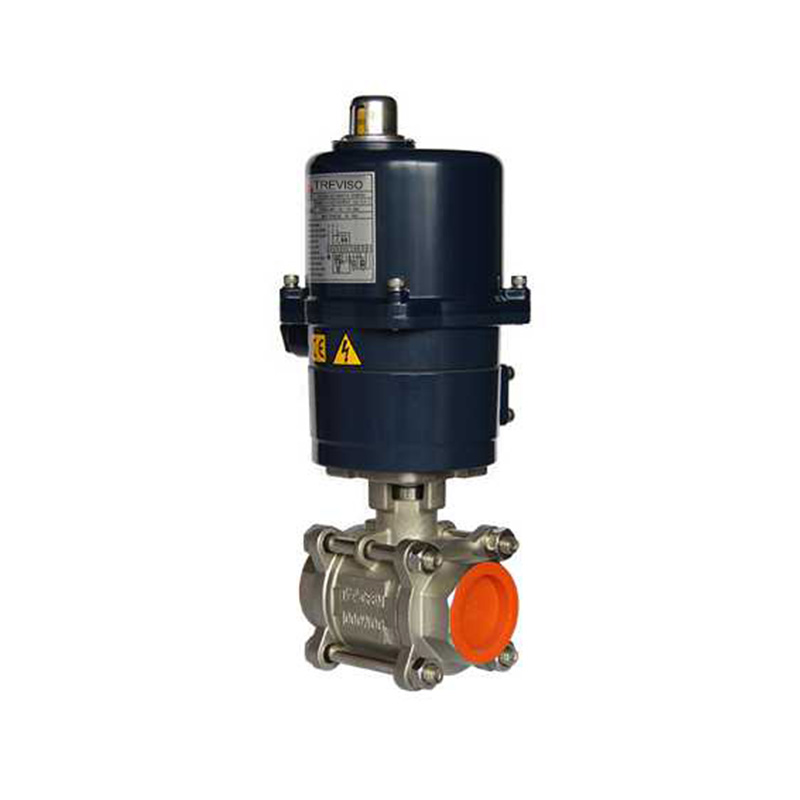

Product Features

1. Shell:

(1) IP67: Waterproof and dustproof sealing level

(2) NEMA 4X: Waterproof and Dustproof Seal

(3) Material: aluminum alloy powder coating

2. Motor:

(1) Standard induction motors are used in drives with a starting frequency of 30%, while DC motors are used at a starting frequency of 75%

(2) All models of motors are of F grade

(3) Equipped with a built-in temperature control protection device (135℃) to prevent the motor from overheating and burning out

3. Protruding type opening indicator: All models are equipped with a continuous mechanical device on the top of the housing for opening indication

4. Manual device:

(1) Clutchless design: When the current is interrupted, it can be disconnected without the need for any auxiliary tools (such as wrenches, brakes, etc.),

The valve can be manually rotated to the desired position by directly turning the handwheel

(2) And when the power supply is normal, the operating personnel will not cause personal injury or drive malfunction due to misoperation of the handwheel

5. Gear set:

(1) High alloy steel gears have an automatic locking function to prevent valve rotation

(2) The gear assembly has been coated with sufficient high-temperature resistant lubricating oil

6. Working conditions:

(1) Ambient temperature: -30°C to +65°C

(2) Humidity: 30% - 95%

7. Certifications: ISO9001, CE, CAS, RoHS

8. Application Fields: Widely used in petroleum, chemical, natural gas, power plants, metallurgy, water treatment engineering, and other fields

9. Power consumption: AC10W 300W

Closing time: 8sec/58sec 0°~90°

Maximum torque: 35~3500NM

Actuator voltage: AC: 1φ110V, 1φ220V, 3φ220V, 3φ380V, 3φ440V, 24V: DC24V. Opening indicator: All models are located directly above the upper cover of the housing
