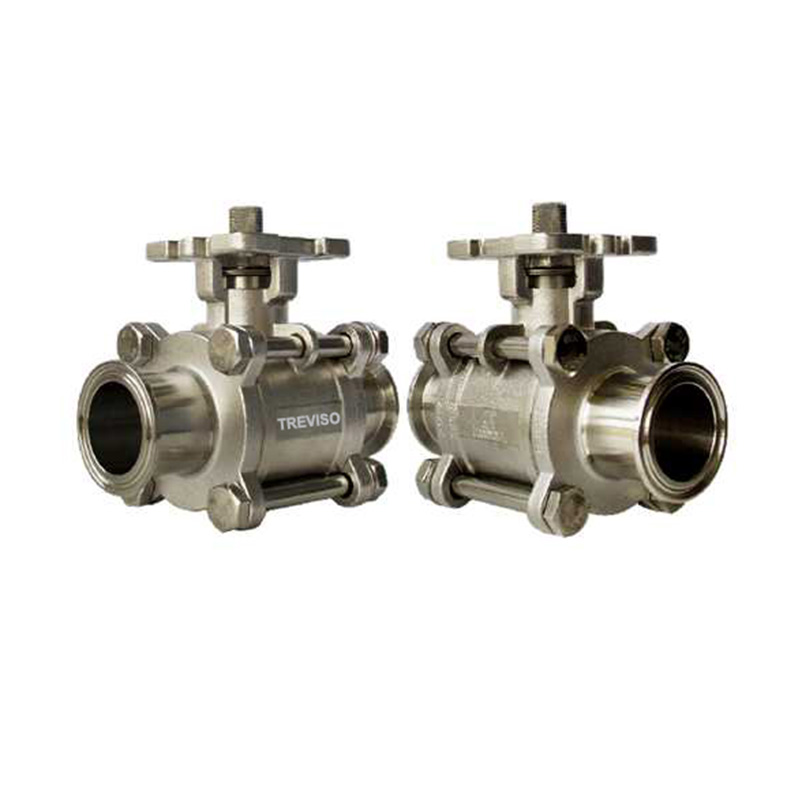

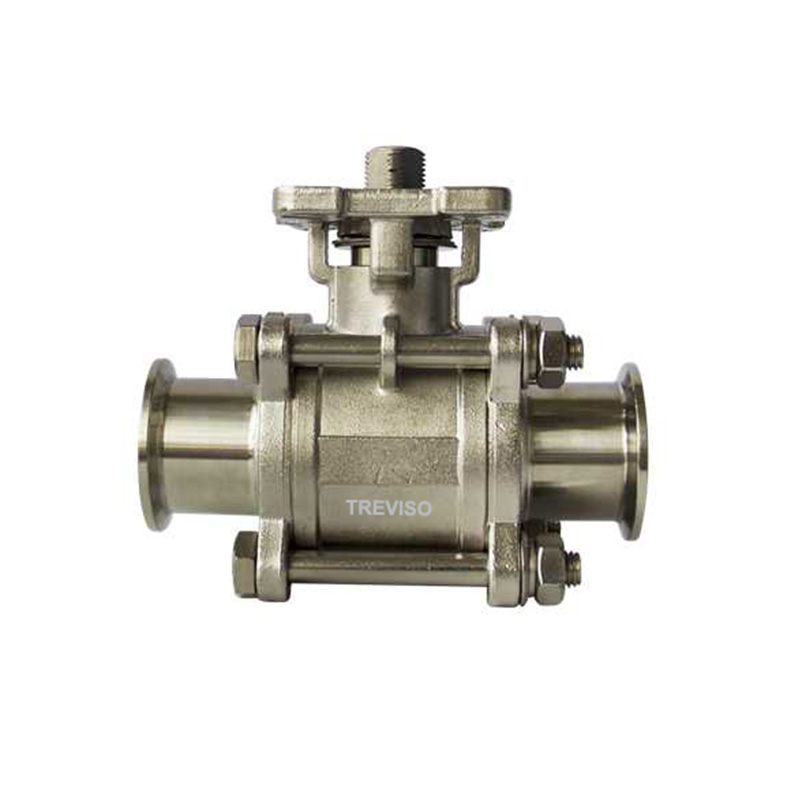

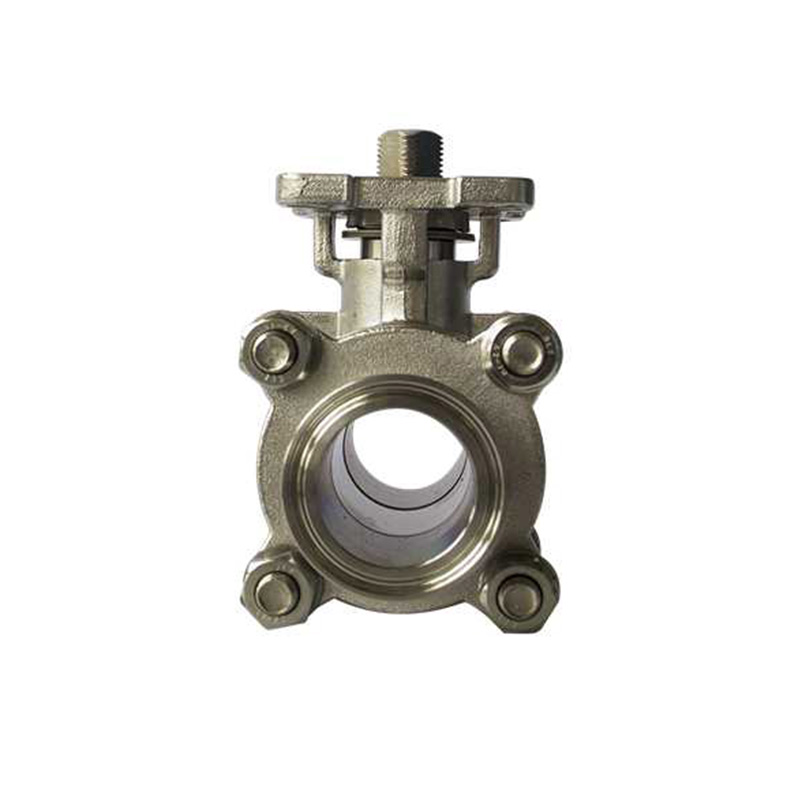

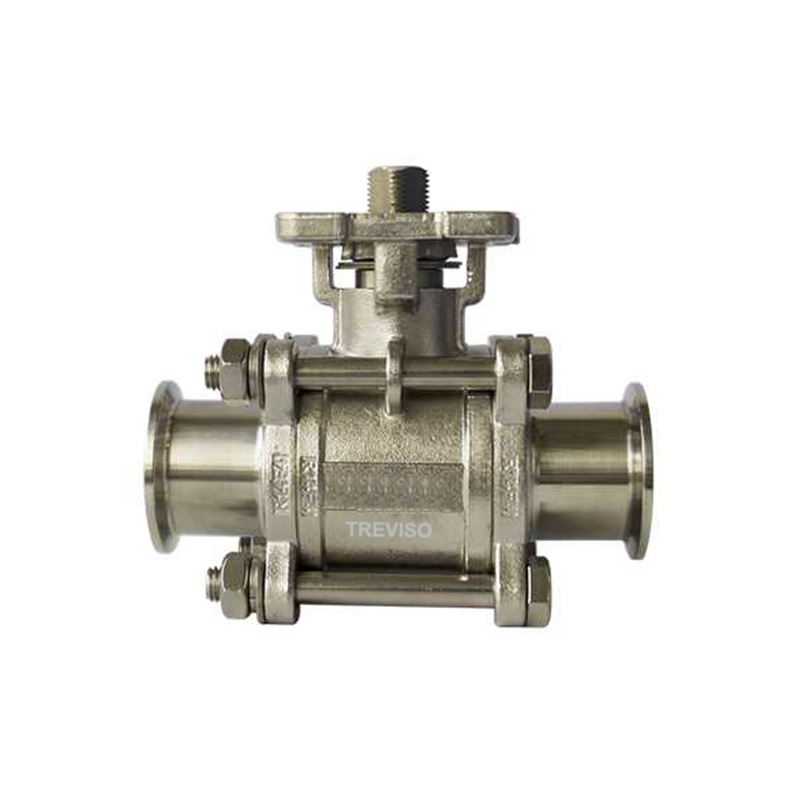

The high platform clamp ball valve can be fully opened or closed by rotating the valve ball 90 degrees. Usually used for making high-pressure ball valves. Used for cutting off or connecting media in pipelines, the valve seat adopts an elastic sealing structure, which is easy to open and close and reliably sealed. Suitable for various media such as water, steam, oil, nitric acid, acetic acid, etc.

1. The clamp connection is easy to disassemble and is suitable for working conditions that require frequent cleaning.

2. Easy to install, can be installed in any direction in any part of the pipeline.

3. The passage inside the valve body is smooth and flat, which can transport viscous fluids, slurries, and solid particles.

4. Multiple drive mechanisms such as pneumatic and electric can be configured to achieve remote control and automated operation.

5. Due to the excellent self-lubricating properties of materials such as polytetrafluoroethylene and low friction loss with the ball, the service life of ball valves is long.
