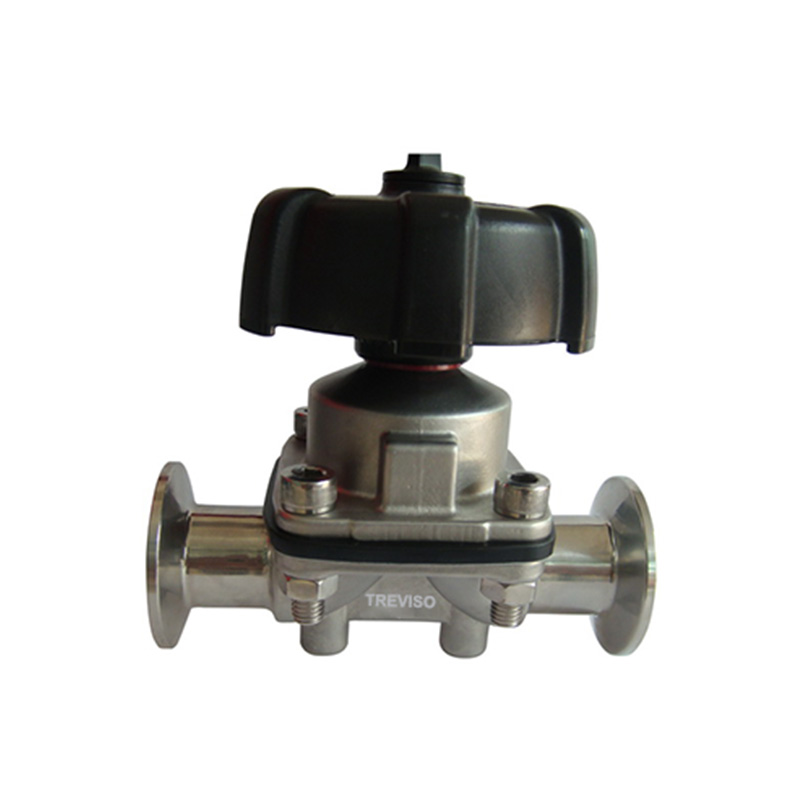

Diaphragm valve is a widely used diaphragm product, which is suitable for the fluid control system of pharmaceutical, biological, dairy, beverage, chemical, cosmetic, food, electronics and other fluid related industries. Its advantages are no dead corner, no leakage, easy cleaning, low maintenance cost, easy operation and many other advantages. It can realize automatic control and manual control, and provide good products for reducing the operation cost of enterprises.

Air source control parameters

Control pressure range: 5-7bar

Valve size specification

Diameter range: dn6- dn125mm

Working pressure is related to diaphragm material

Maximum working pressure: 6kg (when the diaphragm is ethylene propylene rubber or fluorinated rubber); 4kg (when the diaphragm is PTFE)

Maximum operating temperature

Maximum working temperature: 150 ℃ (to be judged in combination with service conditions)

Diaphragm and valve body material

Diaphragm material: EPDM, PTFE

Valve body material: stainless steel

Interface dimension description

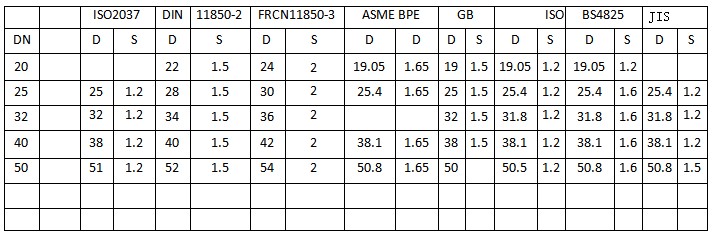

Interface dimensions: refer to the following table for specific dimensions
