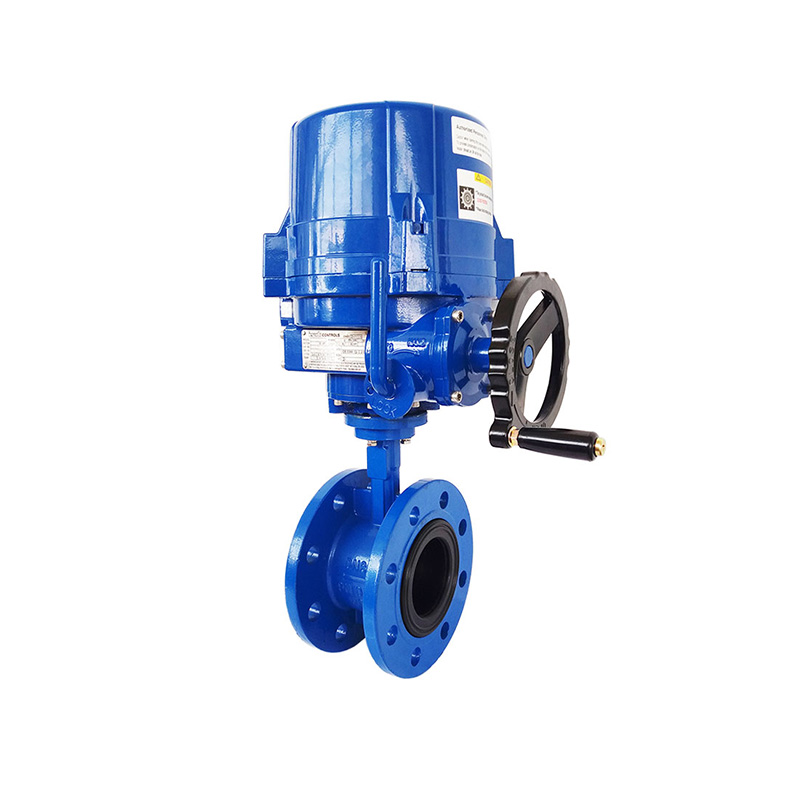

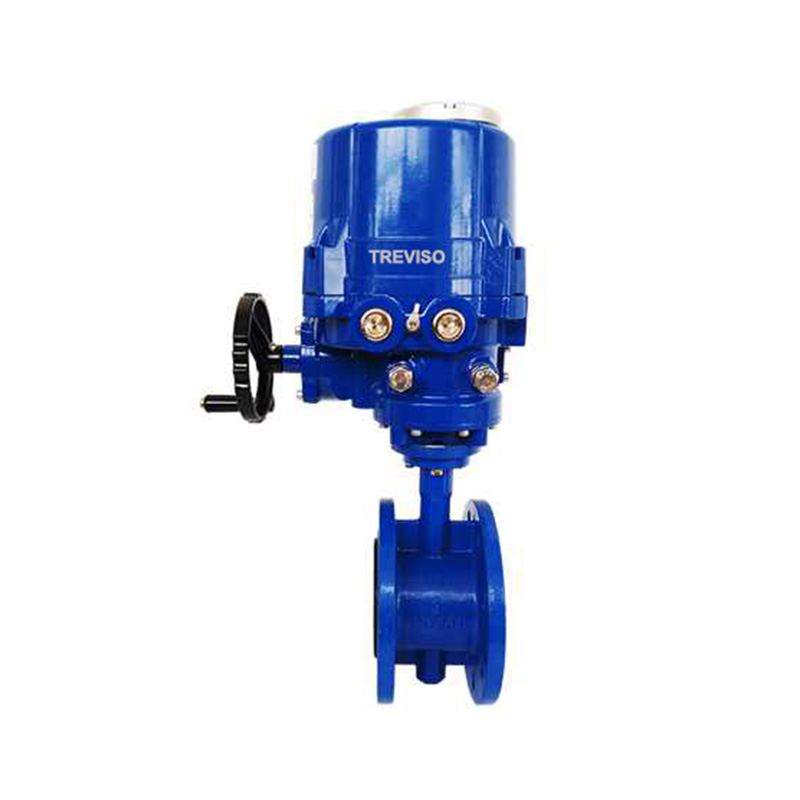

The electric center line butterfly valve is an integrated structure, which can be connected to the power supply to control the operation. It can also be added to the control module to input the control signal for regulation and control. The electric center line butterfly valve has the advantages of strong function, small volume, light and pleasant, reliable performance, simple matching, and large circulation capacity. For normal temperature and clean media, the valve plate and soft seal (rubber ring and tetrafluoro ring) can be selected to reduce leakage. Under high temperature and high pressure conditions, the triple eccentric hard seal valve body can be selected.

The electric center line butterfly valve can be widely used in the industrial process automatic control system of food, environmental protection, light industry, petroleum, chemical industry, teaching equipment, papermaking, electric power and other industries.

Product details of electric midline butterfly valve actuator

1. External mechanical limit bolt

In case of failure of the electronic limit switch, the actuator shall be prevented from overstroke operation. Cable interface: standard 2 pf3/4 (maximum 1)

2. Torque switch

Overload protection, 1 on/off

3. Terminal block

Spring locking type, firm wiring, and will not fall off in strong vibration environment

Actuator product features

1. Small size, light weight, high duty cycle.

2. Combined with planetary gear, it has high efficiency.

3. It is suitable for automatic control of switch type small ball valve/plug valve and baffle.

4. The induction motor with special design has high starting torque and overheating protection.
